High Accuracy Commercial Fruit Juice Making Machine Super Clean Sanitizer Washer Peristaltic Pump Filler Sealer

Name: High Accuracy Commercial Fruit Juice Making Machine Super Clean Sanitizer Washer Peristaltic Pump Filler Sealer
Brand: Sunswell
Price: 30000 USD

Quality High Accuracy Commercial Fruit Juice Making Machine Super Clean Sanitizer Washer Peristaltic Pump Filler Sealer for sale

Brand Name : Sunswell

Model Number : RXXGF 40-40-16-24-8

Certification : ISO,CE

Place of Origin : China

MOQ : 1 Set

Price : 30000USD

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Sets per Year

Delivery Time : 90 days

Packaging Details : wood case & carton packaging

Packaging Material : Plastic

Filling Material : Juice

Filling Accuracy : ±1%

Application : Beverage

Packaging Type : Bottles

Automatic Grade : Automatic

Weight : 5000 KG

Warranty : 1 Year

Contact Now

Products Description

High Accuracy Commercial Fruit Juice Making Machine Super Clean Sanitizer Washer Peristaltic Pump Filler Sealer

Hot Filling Juice machine For Apple /orange /pineapple /peach juice, flavored milk, tea drinks, energy drinks.

1. RO Water treatment system and Ultra-filtration Water treatment.
2. Juice Pretreatment system (with flavors dosing, blending tank, juice UHT /pasteurizer sterilizer, and juice homogenizer)
3. CIP cleaning system
4. Conveyor, rinser-filler-capper machine, Labeler, and Shrink wrapper.

Aseptic Juice Rinsing/filling/capping Monoblock

Compact structured, good-looking, easy to operate and highly automated.
Bottles are conveyed with neck blocked. Bottles can be changed through some replacement of guiding sheets, starwheels of nylon instead of height adjustment of machine.
Rinser-clamp of special design is strong and endurable, without contact with worms at bottle-mouth, to prevent bi pollution.
Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.
Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.
Feed-in volume is controlled to ensure accurate filling.

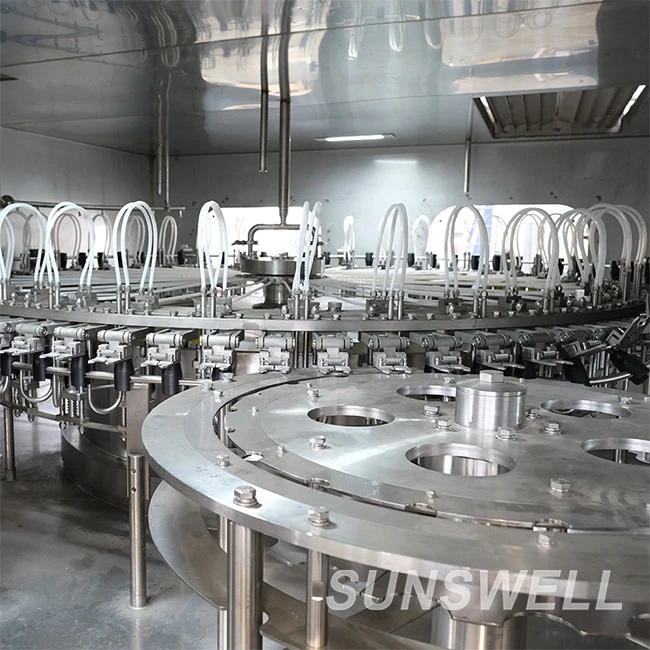

1. Disinfectant Rinser

* Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

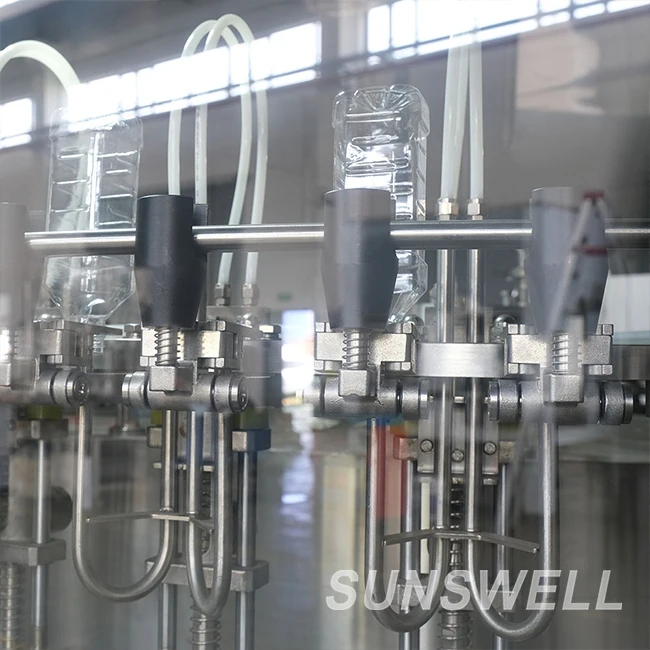

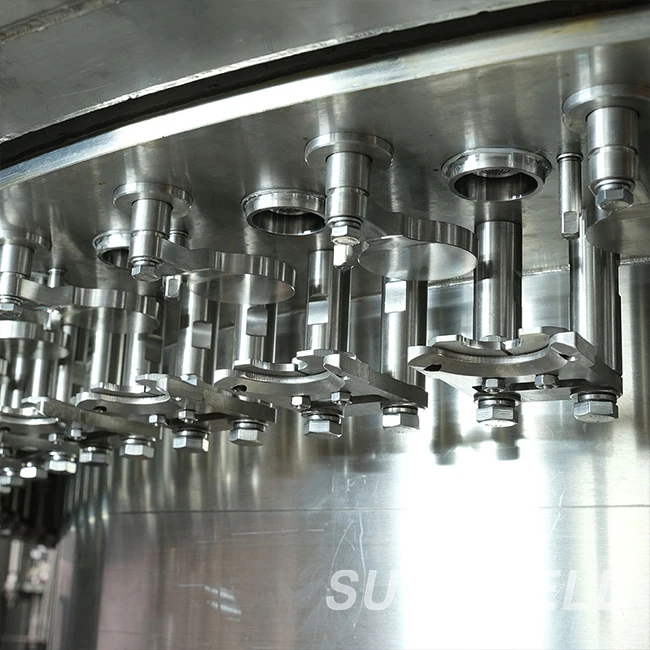

2. Aseptic Water Rinser

* Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
* Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water..

Flow meter pump

The base comes with mounting holes, the peristaltic pump can be fixed in the position of these four holes.* Compact design meet the requirement of most devices
* Stepper motor drive, high precision liquid delivery
* Handle mechanism allows tube loading in seconds
* OEM Acrylic label to highlight your company brand
* 3/6 rollers provide high-flow or high-precision pulsation-free pumping
* Reliable performance and long service life

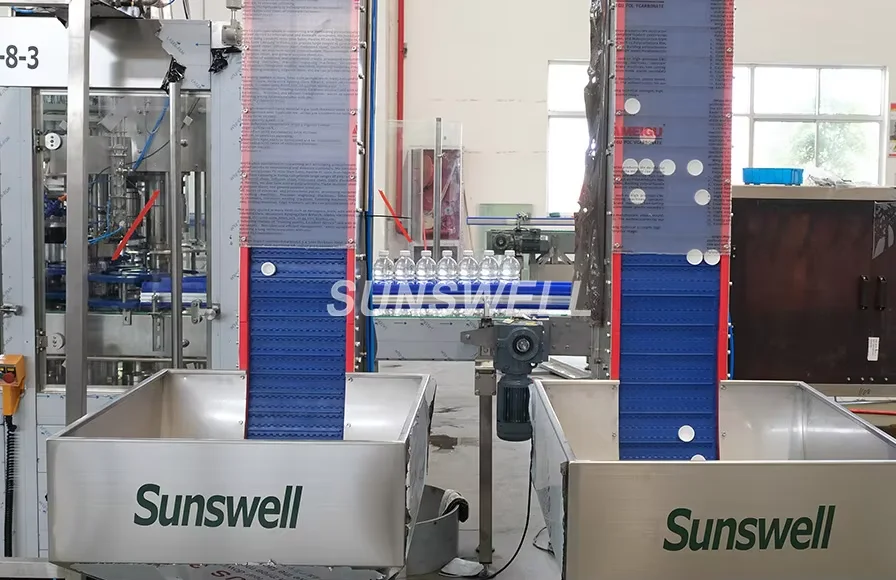

Cap elevator

The elevator is made for bottle cap into the caps collection device of capper main machine. The conveying chain adopts high strengthened wear proof plate chain, lengthening the service life of chains and hopper. The high slow stable conveying speed and advanced design, ensure the stability of the whole machine. Easy operation and maintenance with little consumerable spare parts.

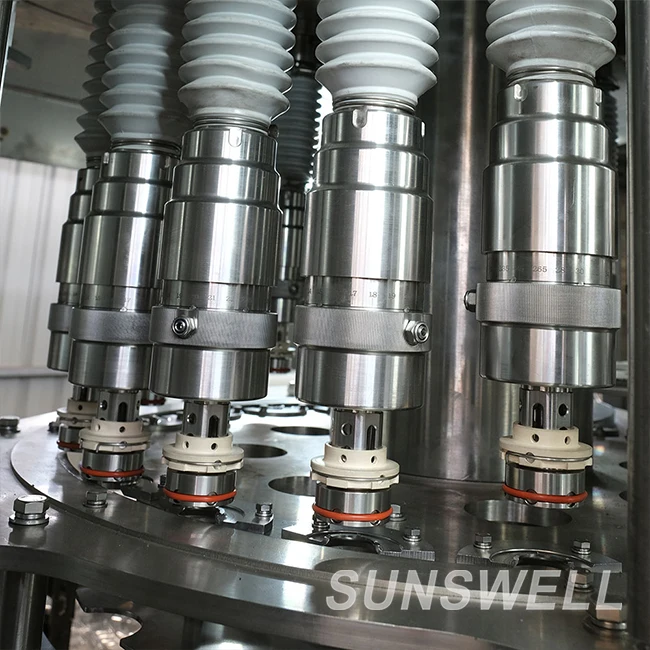

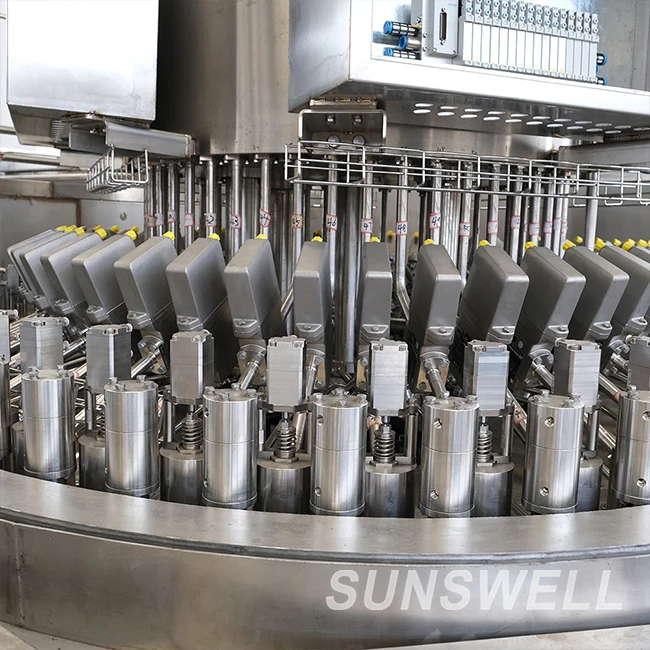

4. Filler

Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the
liquid level is stable.Rotary wheel fully made of stainless steel SUS 304. Isobaric filling method. Filling valves are made of SUS304 Filling valves are reasonably structured with accurate filling. Bottles go up and down by pneumatic cylinders and cams, to process filling with contact to bottle-mouth.

5. Capper

*The bottle into the click wheel through the transition card bottleneck Capping Machine.
*Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.

*Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.

Model	Filling Heads	Capacity 500ml	Bottle Size	Power	Dimension(mm)	Weight(KG)
RCGF14-12-5	12	2500BPH	200-2000ml	1.8kw	2200×1800 × 2000	2500
RCGF 18-18-6	18	4000BPH	200-2000ml	2.6kw	2500 × 1800 × 2300	3000
RCGF 24-24-8	24	6500BPH	200-2000ml	3.8kw	2800 × 2100 × 2300	5000
RCGF 32-32-10	32	12000BPH	200-2000ml	4.2kw	3500 × 2200 × 2300	6000
RCGF 40-40-10	40	1500BPH	200-2000ml	7kw	4760 × 2080 × 2300	7000
RCGF 50-50-12	50	18000BPH	200-2000ml	9kw	5150 × 3820 × 2700	10000
RCGF 60-60-15	60	20000BPH	200-2000ml	13kw	5300 × 3950 × 2700	8500

Company Profile

Maldives

Water Production Line Combiblock

(330/500/1500ml)

USA

Carbonated Water Filling Line

20000BPH

Syria

Carbonated Drink Filling Line

24 000 Cans Per Hour

Any more questions, please feel free to contact us !

Related Products

1. Complete Bottling Lines: Bottling, Labeling, Packaging & Processing

1) Water Treatment System

2) Bolw Molding Machine

3) Filling Machine

4) Labelling Machine

5) Packaging System

Blowing-filling-capping CombiBlock

2. Various liquid packaging

3. Different packaging forms

Any more questions, pls feel free to contact me !

FAQ

Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
