High Speed Mineral Water Bottle Making Machine Price 5L Barrel Pure Mineral Water Filling Production Line

Name: High Speed Mineral Water Bottle Making Machine Price 5L Barrel Pure Mineral Water Filling Production Line
Brand: Sunswell
Price: 16000 USD

Quality High Speed Mineral Water Bottle Making Machine Price 5L Barrel Pure Mineral Water Filling Production Line for sale

Brand Name : Sunswell

Model Number : XGF6-6-1

Certification : ISO,CE

Place of Origin : China

MOQ : 1 Set

Price : 16000

Payment Terms : L/C, T/T

Supply Ability : 50 Set/Sets per Year

Delivery Time : 60 days

Packaging Details : wood case & carton packaging

Contact Now

Products Description

High Speed Mineral Water Bottle Making Machine Price 5L Barrel Pure Mineral Water Filling Production Line

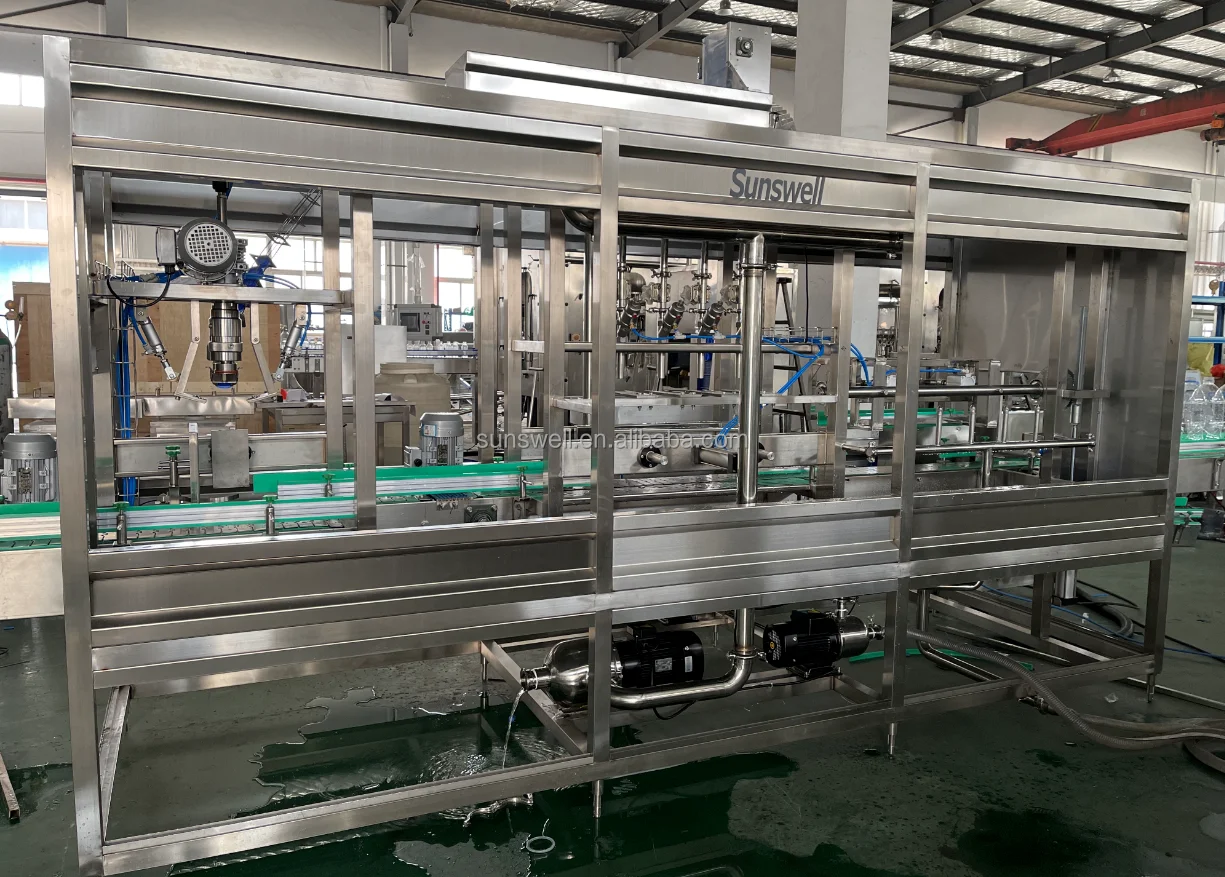

Linear 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

Main Features

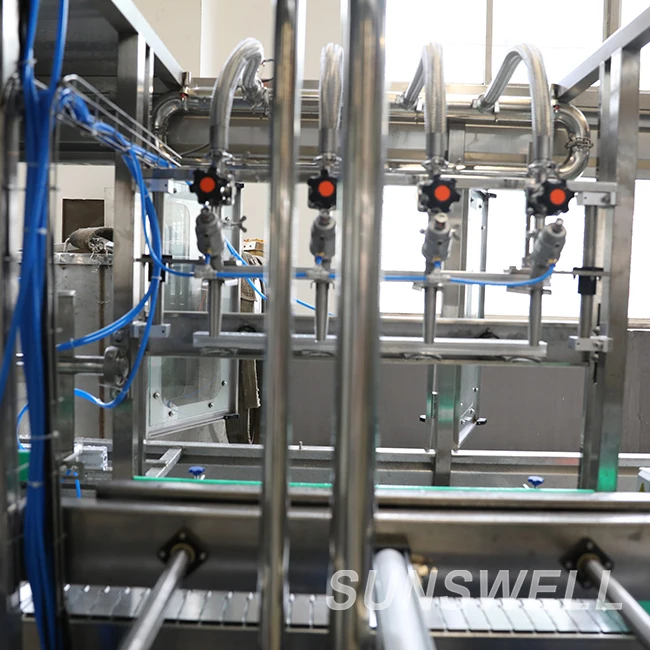

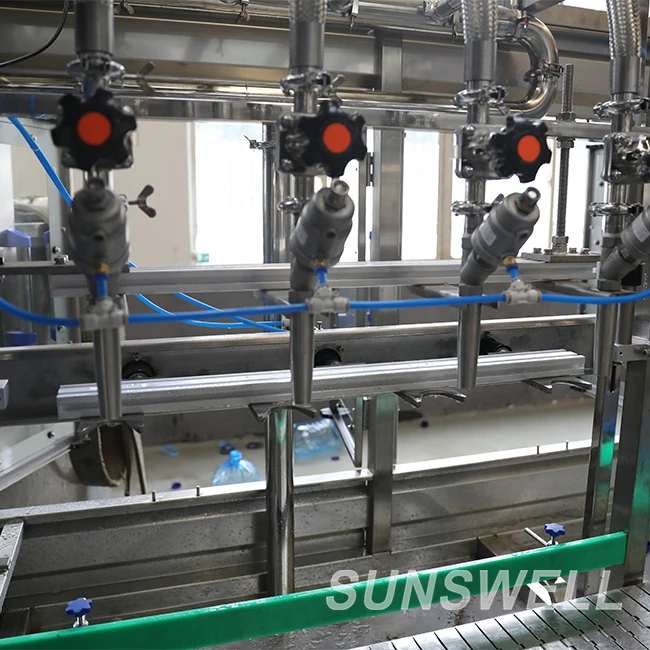

Filler

1.The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the
material from the bottleneck, the control accuracy is within ±2mm.
2.The filling valve material is SUS304.
3.The filling system has liquid level automatic control.
4.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
5.Bottle is conveying by the wheel in the filling part.

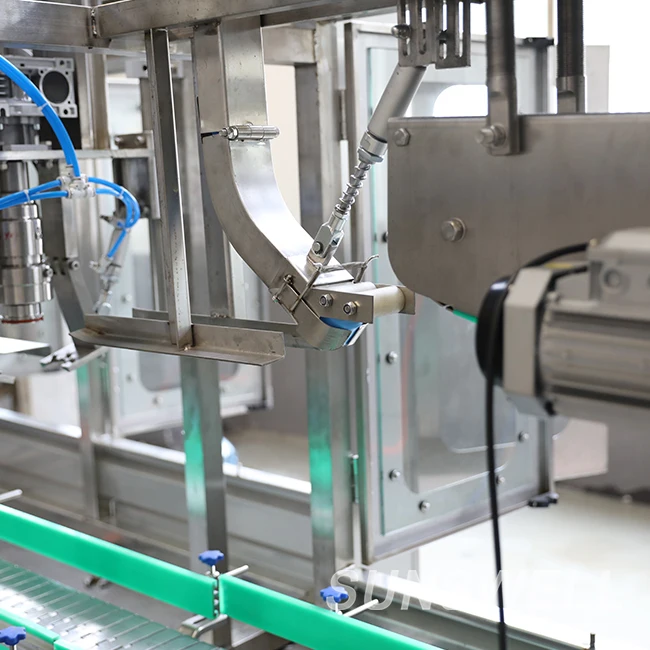

Capper

1.Sunswell import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine.The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2.In the screw capping part. it installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop
automatically

Technical Parameters

Model: CGF4-4-1-1
Number of working positions: rinser 4, filler 4, capper 1
Rated capacity	Max 500BPH@12L
Air supply pressure	0.6-0.8 MPa
Rinsing water pressure	0.2-0.25 MPa
Way of filling	Pressure filling
Installed power	3 KW
Dimension	4500×1150×1850mm (L×W×H)
Machine weight	1200Kg

Why Choose Us

00:00

02:00

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

Advantage:

(1)A to Z turnkey plant provider (2)Fully automatic or economic solution optional (3)10+ years of global market experience (4)Serve customers over 50 countries and regions worldwide

Any more questions, please feel free to contact us !

Maldives

Water Production Line Combiblock

(330/500/1500ml)

USA

Carbonated Water Filling Line

20000BPH

Syria

Carbonated Drink Filling Line

24000 Cans Per Hour

Any more questions, please feel free to contact us !

> the wide range of liquid packaging plant machinery > the various range of possible end products > 10+ years of global market experience > 80+ countries of customers worldwide > 20+ mechanical, electrical and food science engineers > 10+ service staff

FAQ

Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If
needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
